AIPMT PRELIMS2010Physics-AC Circuits
AIPMT PRELIMS 2010 Physics Voltage and Current Measurement MCQ Question
Type: MCQ-numerical-Hard-Class 12

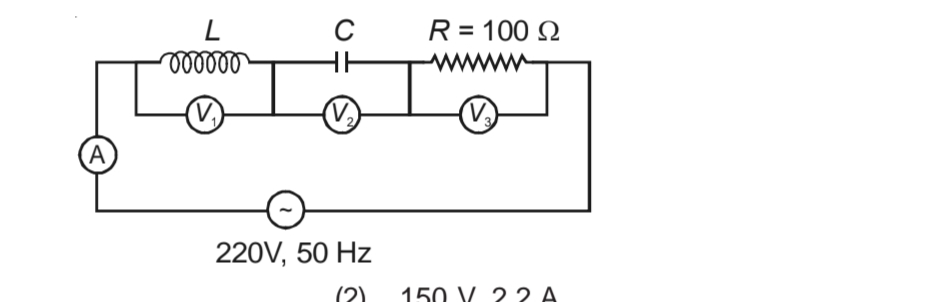

In the given circuit the reading of voltmeter V₁ and V₂ are 300 volts each. The reading of the voltmeter V₃ and ammeter A are respectively
A
100 V, 2.0 Å
B
150 V, 2.2 Å
C
220 V, 2.0 Å
D
220 V, 2.2 Å
Correct Answer
Option C
Detailed Explanation
The circuit is an AC circuit with a resistor and inductor. The voltage across the resistor and the current can be calculated using Ω's law and impedance.
