STANDARDPhysics-Alternating Current
STANDARD Physics AC Circuits MCQ Question
Type: MCQ-numerical-Medium-Class 12

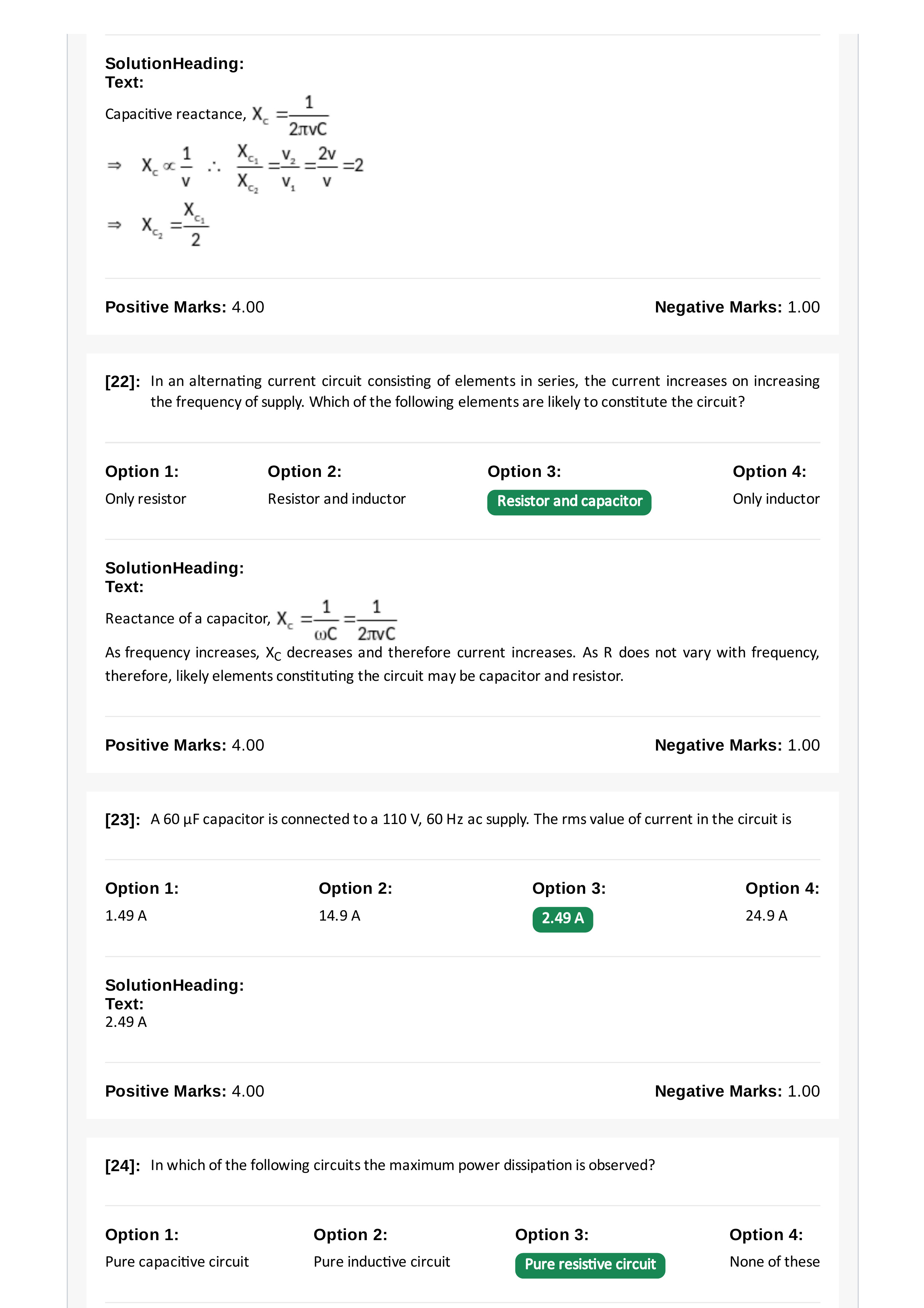

In the series LCR circuit shown, the impedance is
A
200 Ω
B
100 Ω
C
300 Ω
D
500 Ω
Correct Answer
Option D
Detailed Explanation
The impedance Z in a series LCR circuit is given by Z = √(R² + (Xₗ - Xc)²). With L = 1 H, C = 20 μF, R = 300 Ω, and frequency 50/π Hz, the inductive reactance Xₗ = 100 Ω and capacitive reactance Xc = 100 Ω. Thus, Z = √(300² + (100 - 100)²) = 500 Ω.
