STANDARDPhysics-Electric Circuits
STANDARD Physics Equivalent Resistance MCQ Question
Type: MCQ-conceptual-Medium

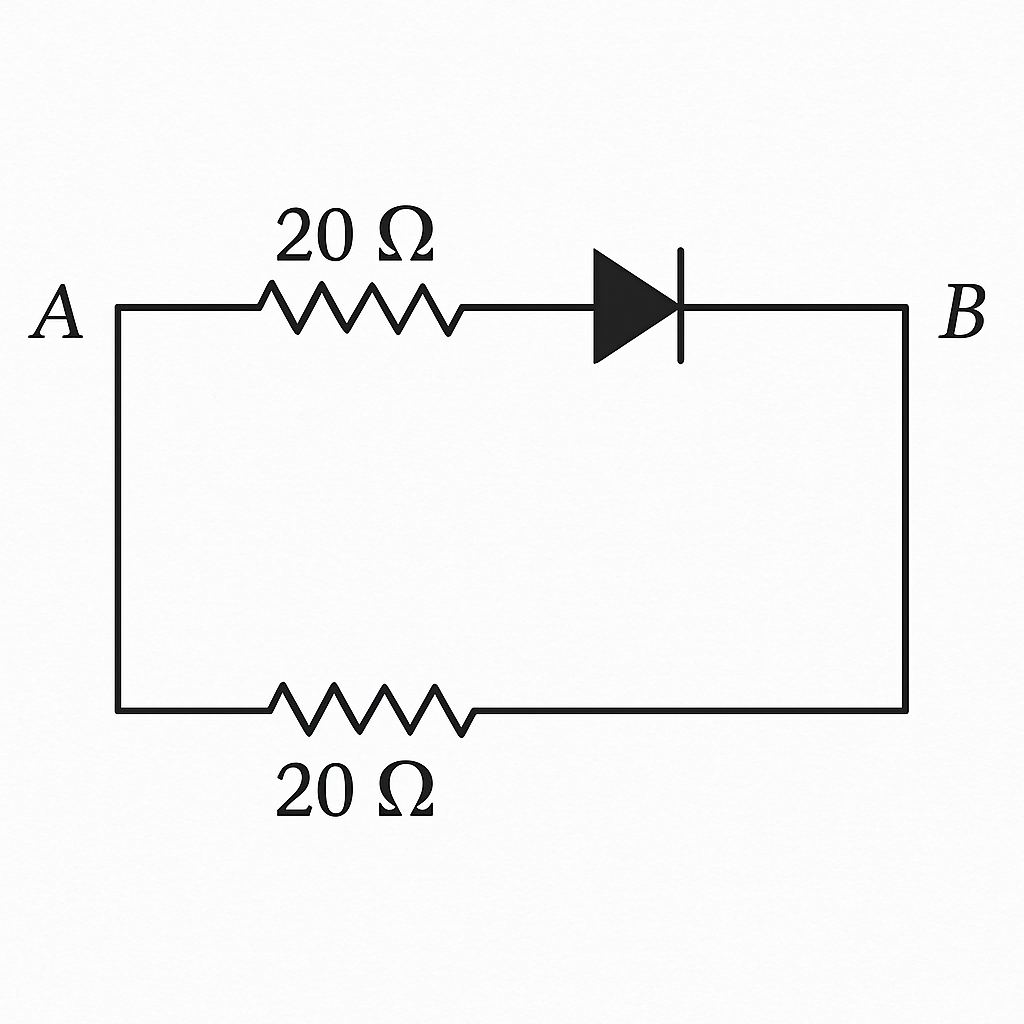

The equivalent resistance of the circuit shown in figure between the points A and B if Vₐ < Vᵦ is
A
10 Ω
B
20 Ω
C
5 Ω
D
40 Ω
Correct Answer
Option B
Detailed Explanation
When Vₐ < Vᵦ, the diode gets reverse biased and offers infinite resistance. No current flows through the upper branch in the given circuit, making the equivalent resistance R = 20 Ω.
Found an issue with this question?
