AIPMT PRELIMS2006Physics-Electric Circuits
AIPMT PRELIMS 2006 Physics Wheatstone Bridge MCQ Question
Type: MCQ-conceptual-Medium-Class 12

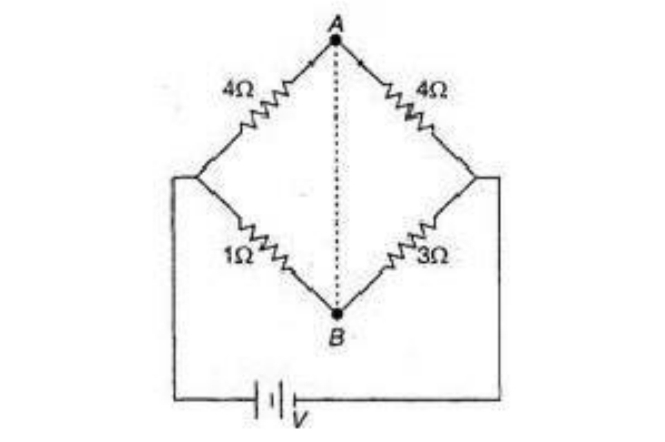

In the circuit shown, if a conducting wire is connected between points A and B, the current in this wire will:
A
flow from A to B
B
flow in the direction which will be decided by the value of V
C
be zero
D
flow from B to A
Correct Answer
Option D
Detailed Explanation
The circuit is balanced, so no current will flow through the wire connecting points A and B.
Found an issue with this question?
