STANDARD Chemistry Graphical Representation MCQ Question

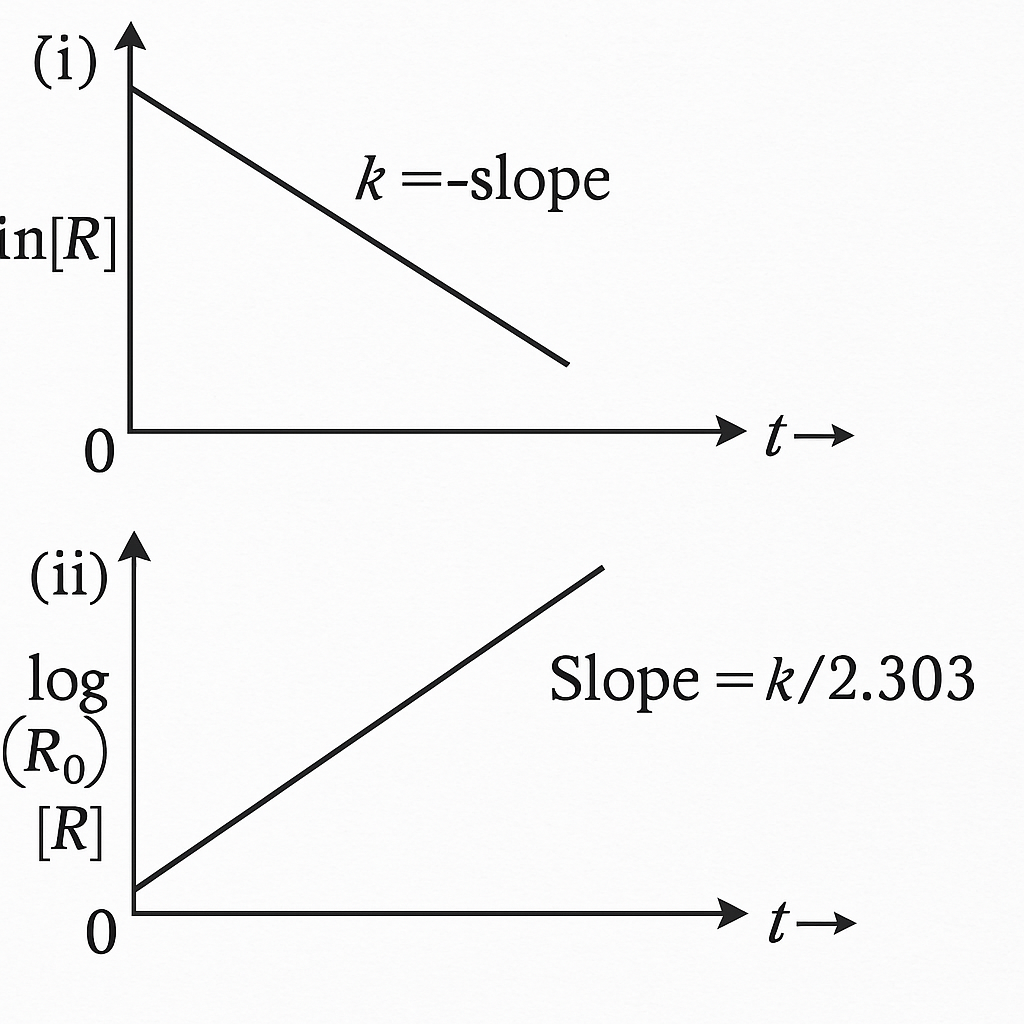

Observe the given graphs carefully. Which of the given orders are shown by the graphs respectively?
(i) Zero order (ii) First order
(i) First order (ii) Zero order
(i) First order (ii) First order
(i) Second order (ii) Zero order
Correct Answer
Detailed Explanation
The first graph shows a linear relationship between ln[R] and time, indicating a first order reaction. The second graph shows a linear relationship between log([R₀]/[R]) and time, which is also characteristic of a first order reaction.
