STANDARD Chemistry Graphical Representation MCQ Question

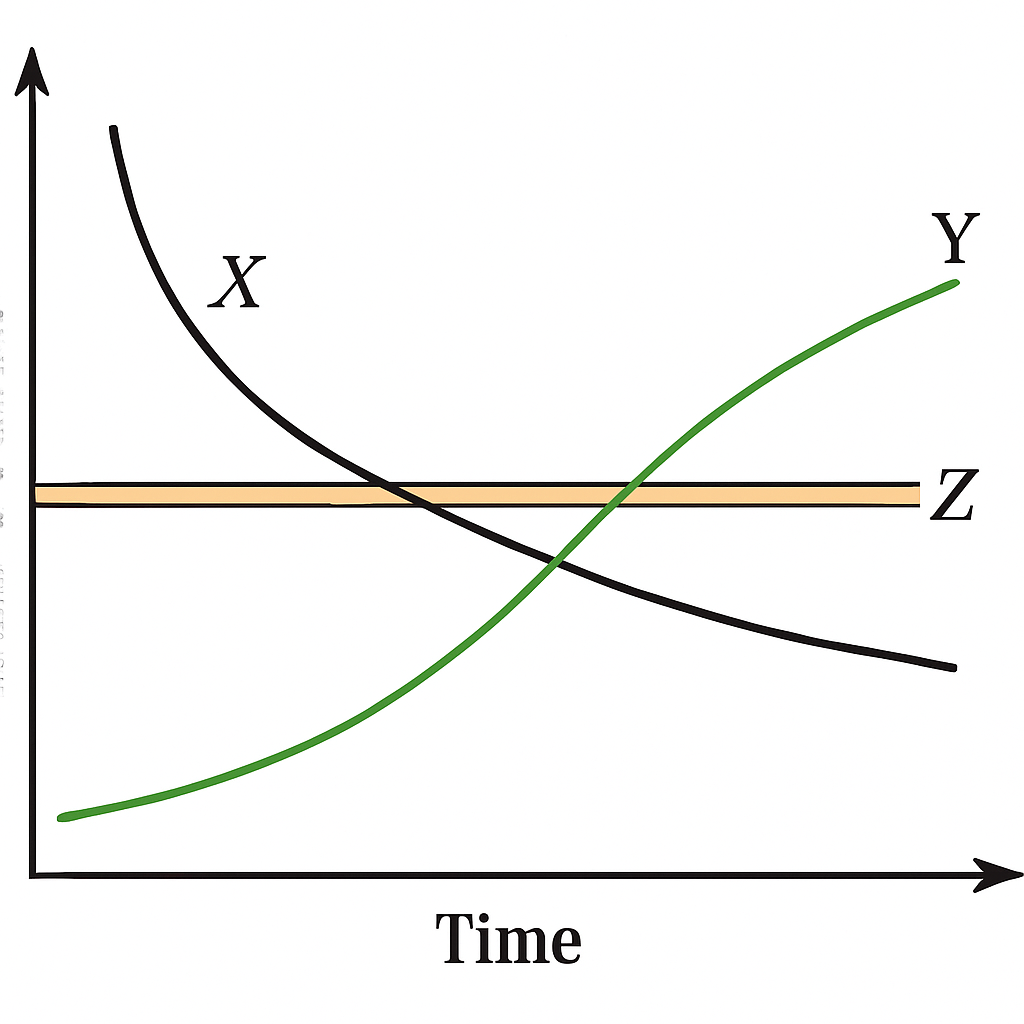

Study the given figure and label X, Y and Z.
X-Backward Reaction Y-Forward Reaction Z-Products
X-Forward Reaction Y-Backward Reaction Z-Equilibrium
X-Reversible Reaction Y-Reversible Reaction Z-Equilibrium
X-Forward Reaction Y-Forward Reaction Z-Backward Reaction
Correct Answer
Detailed Explanation
The concentration of reactants decreases and that of products increases with time. Rate of reaction increases with time.
