NEET 2026 Physics Diode Circuits MCQ Question with Solution

In the circuit shown below, the voltage appearing across the diode D will be of the form:

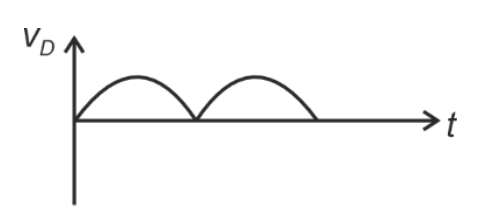

A

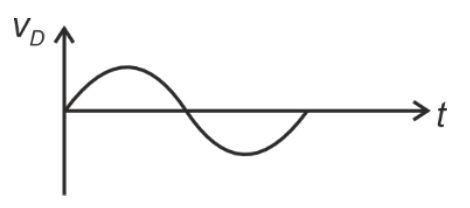

B

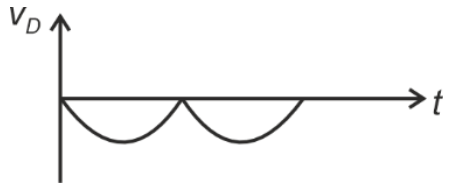

C

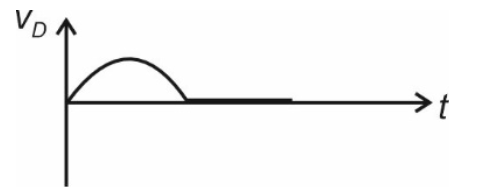

D

Correct Answer

Option D

Detailed Explanation

Voltage drop will be across the diode when it is in reverse bias. In the positive half cycle, it will be reverse biased, resulting in the waveform shown in option (4).
