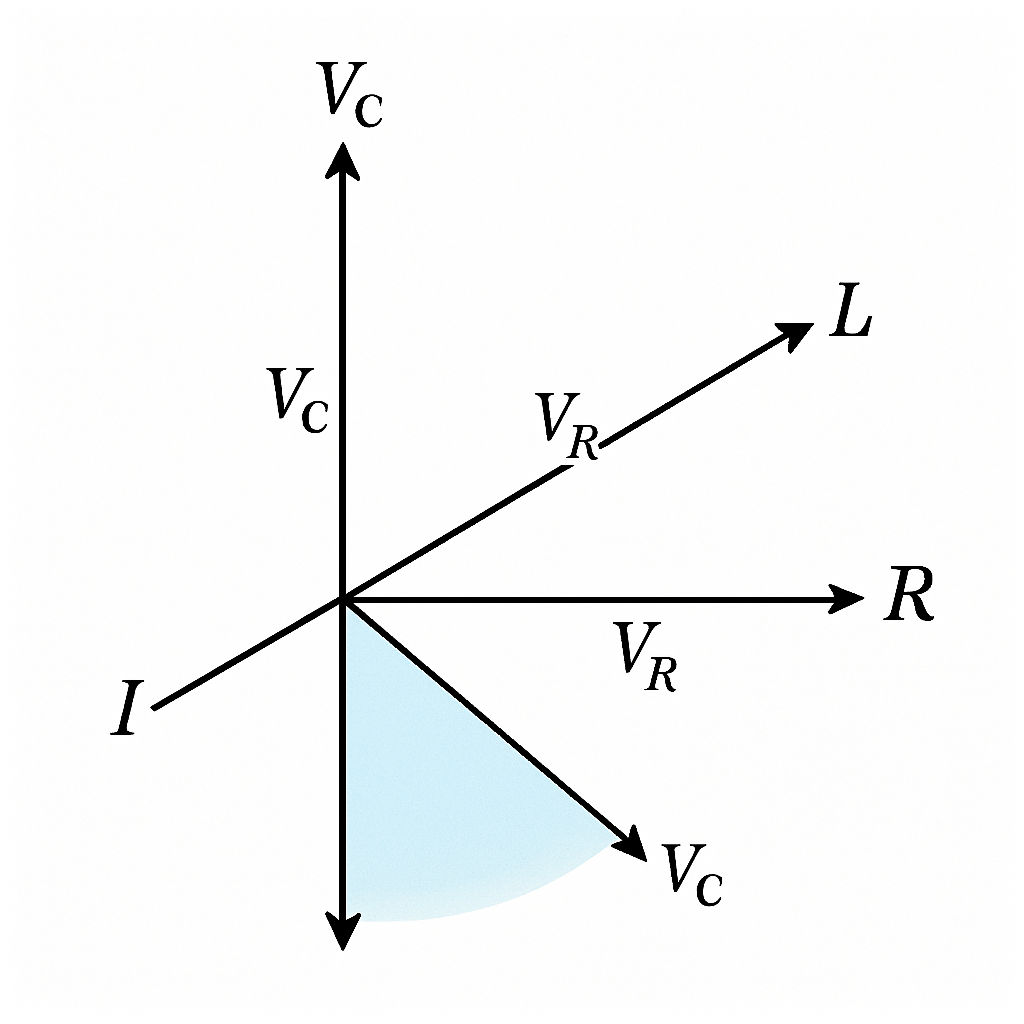

Consider a phasor diagram representing an AC circuit with a resistor, capacitor, and inductor connected in series. If the phasor representing the current is aligned along the positive x-axis, which of the following correctly describes the position of the voltage phasor across the inductor?
Leading the current phasor by 90 degrees.
Lagging the current phasor by 90 degrees.
In phase with the current phasor.
Opposite to the current phasor.
Correct Answer
Detailed Explanation
In an AC circuit, the voltage across an inductor leads the current by 90 degrees, as described in the phasor representation context.
