NEET2014Physics-Thermodynamics
NEET 2014 Physics Cyclic Processes MCQ Question
Type: MCQ-conceptual-Medium-Class 11

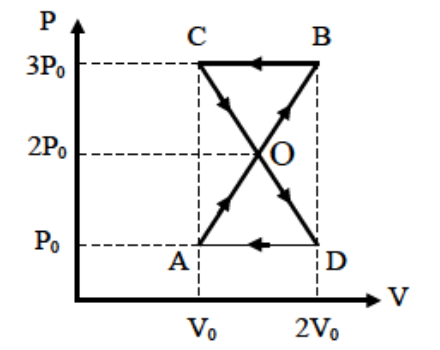

A thermodynamic system undergoes cyclic process ABCDA as shown in the figure. The work done by the system is
A
P₀V₀
B
2P₀V₀
C
P₀V₀/2
D
zero
Correct Answer
Option A
Detailed Explanation
The work done in a cyclic process is equal to the area enclosed by the cycle on a PV diagram. The area of the rectangle ABCD is P₀V₀.
