NEET 2014 Physics Solar Cells MCQ Question
Type: MCQ-conceptual-Medium-Class 12

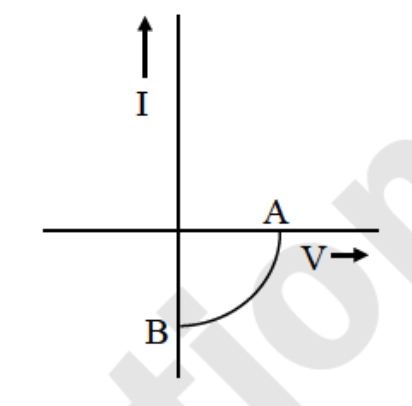

The given graph represents V – I characteristic for a semiconductor device. Which of the following statements is correct?
A
It is V – I characteristic for solar cell where point A represents open circuit voltage and point B short circuit current.
B
It is for a solar cell and points A and B represent open circuit voltage and current respectively.
C
It is for a photodiode and points A and B represent open circuit voltage and current respectively.
D
It is for a LED and points A and B represent open circuit voltage and short circuit current respectively.
Correct Answer
Option A
Detailed Explanation
The V⁻I characteristic of a solar cell shows open circuit voltage at point A and short circuit current at point B.
