NEET Physics Diodes MCQ Question

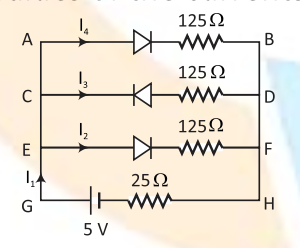

If each diode in figure has a forward bias resistance of 25 Ω and infinite resistance in reverse bias, what will be the values of the currents I₃ and I₄?
0, 0.05
0, 0.025
0.025, 0.05
0.05, 0.05
Correct Answer
Detailed Explanation
In forward bias, the diodes conduct, and the current can be calculated using Ω's law. In reverse bias, the resistance is infinite, resulting in zero current.
