NEET 2026 Physics Diode Circuits MCQ Question
Type: MCQ-conceptual-Medium-Class 12

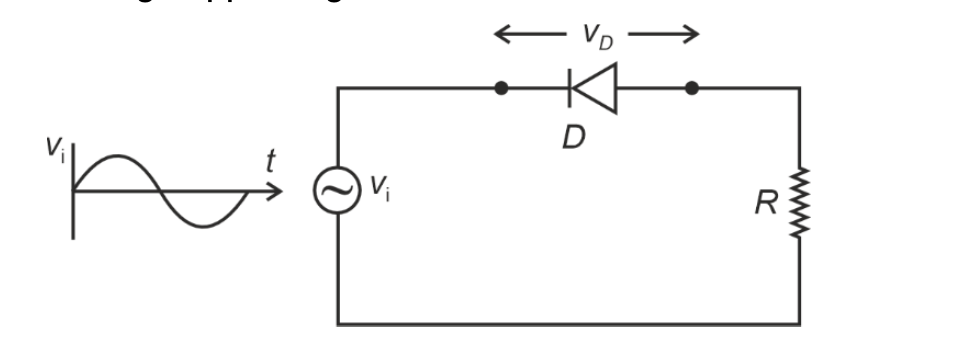

In the circuit shown below, the voltage appearing across the diode D will be of the form:
Correct Answer
Option D
Detailed Explanation
Voltage drop will be across the diode when it is in reverse bias. In the positive half cycle, it will be reverse biased, resulting in the waveform shown in option (4).
