NEET 2024 Physics Gate Output Analysis MCQ Question
Type: MCQ-conceptual-Easy-Class 12

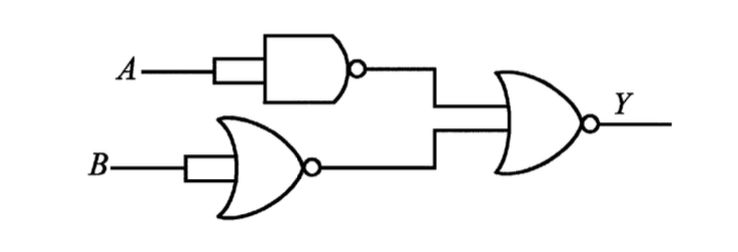

The output (Y) of the given logic gate is similar to the output of an/a:
A
OR gate
B
AND gate
C
NAND gate
D
NOR gate
Correct Answer
Option B
Detailed Explanation
The given logic gate configuration behaves like a NAND gate, which gives a high output for all inputs except when both inputs are high.
