NEET 2015 Physics Semiconductors MCQ Question
Type: MCQ-conceptual-Medium-Class 12

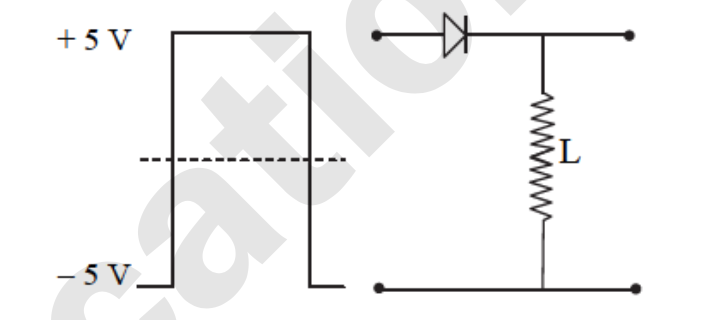

If in a p-n junction, a square input signal of 10 V is applied, as shown, then the output across Rₗ will be
Correct Answer
Option C
Detailed Explanation
The p-n junction acts as a rectifier, allowing only positive half cycles to pass, resulting in an average output of 5 V.
