NEET Physics Negative Resistance MCQ Question
Type: MCQ-conceptual-Medium-Class 12

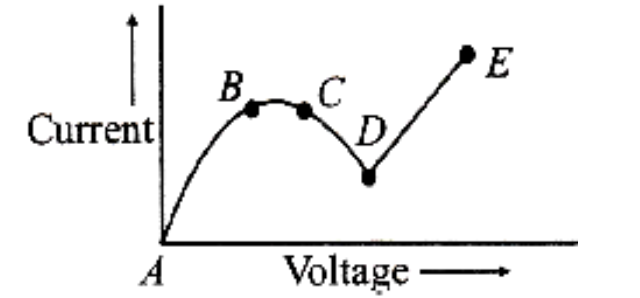

From the graph between current (I) and voltage (V) is shown. Identify the portion corresponding to negative resistance
A
CD
B
DE
C
AB
D
BC
Correct Answer
Option A
Detailed Explanation
Negative resistance is indicated by a region in the I⁻V graph where an increase in voltage results in a decrease in current.
