NEET 2025 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Easy-Class 12

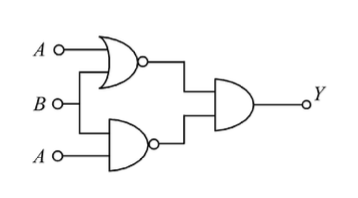

The output (Y) of the given logic implementation is similar to the output of an/a _______ gate.
A
AND
B
NAND
C
OR
D
NOR
Correct Answer
Option D
Detailed Explanation
The logic circuit combines AND and OR gates to produce a NOR gate equivalent output. The correct answer is NOR.
