NEET 2016 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Easy-Class 12

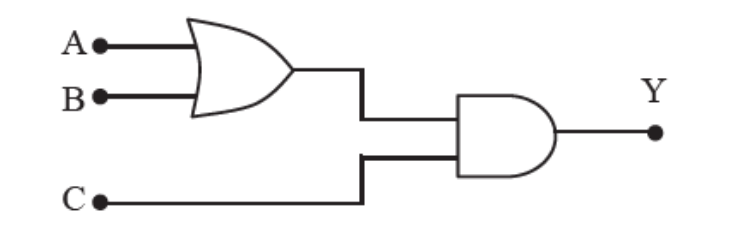

To get an output 1 for the following circuit, the correct choice for the input is
A
A = 1, B = 1, C = 0
B
A = 1, B = 0, C = 1
C
A = 0, B = 1, C = 0
D
A = 1, B = 0, C = 0
Correct Answer
Option B
Detailed Explanation
The circuit is a logic gate configuration. The correct input combination that results in an output of 1 is determined by analyzing the logic gate operations.
