NEET2021Physics-Digital Electronics
NEET 2021 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Medium-Class 12

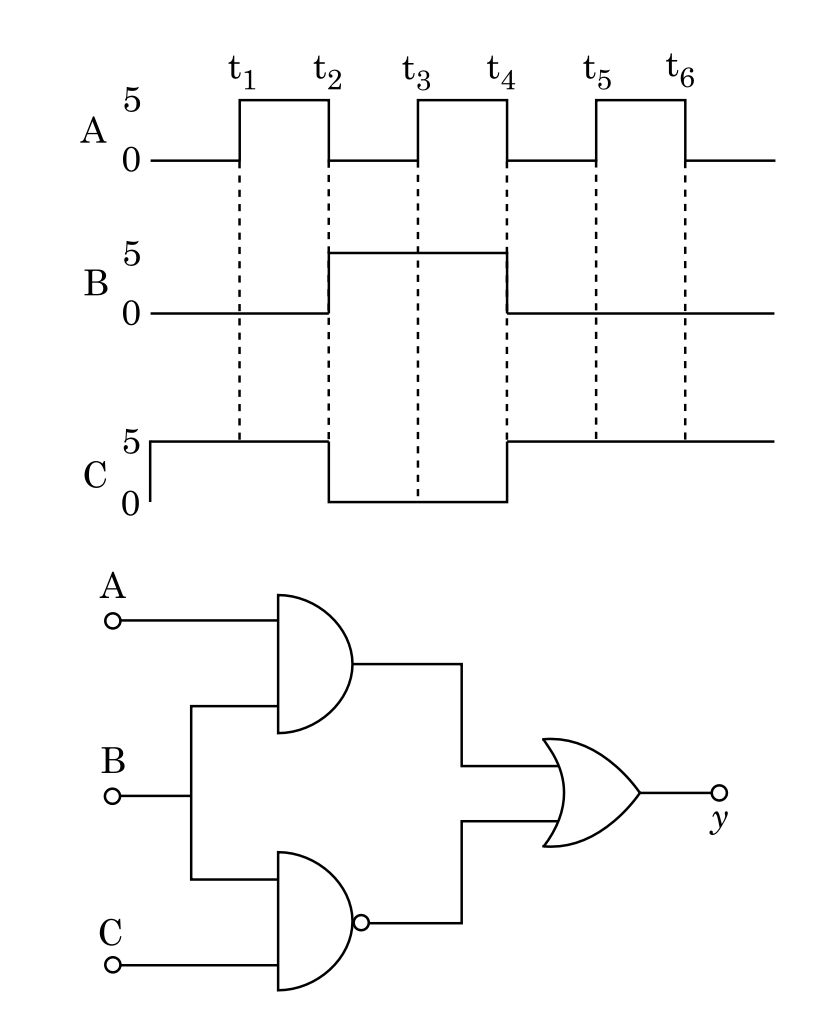

For the given circuit, the input digital signals are applied at the terminals A, B and C. What would be the output at the terminal y?
Correct Answer
Option D
Detailed Explanation
The circuit is a combination of logic gates. By analyzing the input signals and the logic gates, the output at terminal y is 5 V followed by 0 V.
