NEET2019Physics-Digital Electronics
NEET 2019 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Easy-Class 12

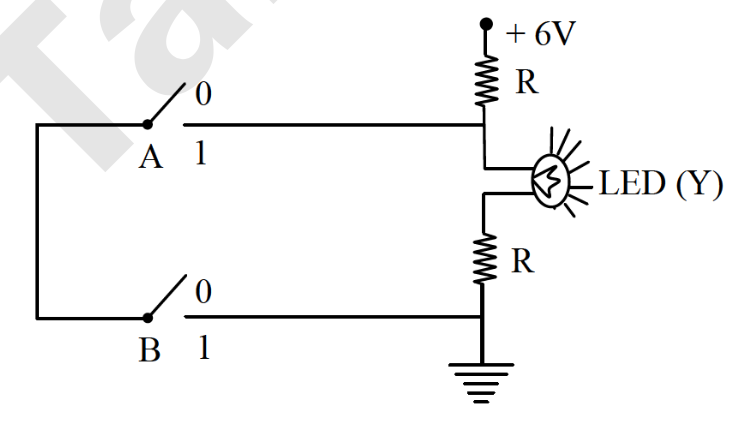

The correct Boolean operation represented by the circuit diagram drawn is:
A
NAND
B
NOR
C
AND
D
OR
Correct Answer
Option A
Detailed Explanation
The circuit is a parallel combination of switches, which represents the OR operation in Boolean logic.
