NEET 2018 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Medium-Class 12

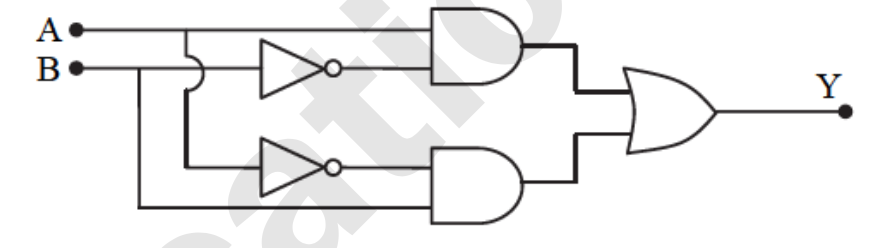

In the combination of the following gates the output Y can be written in terms of inputs A and B as
A
A·B
B
A̅·B + A·B̅
C
A·B + A·B
D
A + B
Correct Answer
Option B
Detailed Explanation
The circuit represents an XOR gate, which outputs true only when the inputs are different.
