NEET 2015 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Easy-Class 12

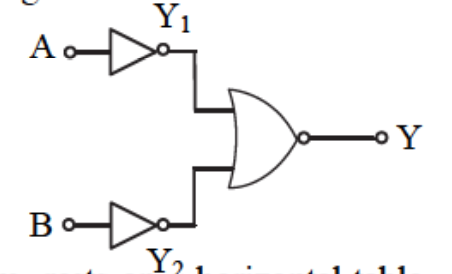

Which logic gate is represented by the following combination of logic gates?
A
OR
B
NAND
C
AND
D
NOR
Correct Answer
Option B
Detailed Explanation
The given combination of logic gates is equivalent to a NAND gate. A NAND gate is a universal gate that can be used to implement any other gate.
