AIPMT PRELIMS2010Physics-Digital Electronics
AIPMT PRELIMS 2010 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Medium-Class 12

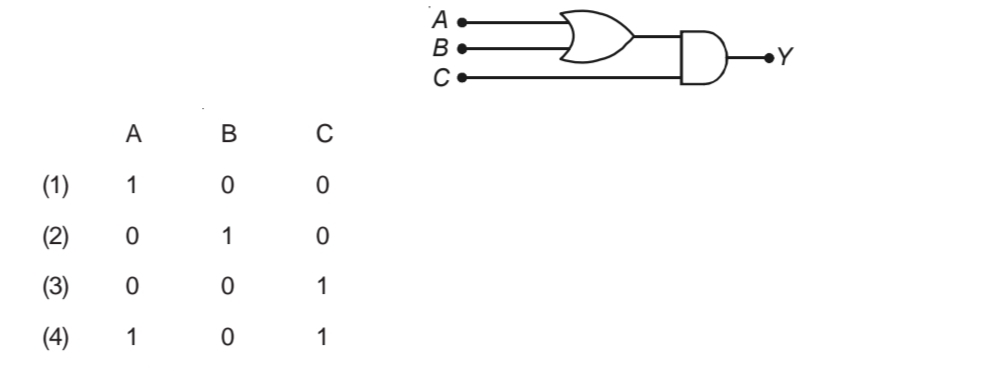

To get an output Y = 1 from the circuit shown below, the input must be
A
A
B
B
C
C
D
D
Correct Answer
Option D
Detailed Explanation
The circuit is a combination of OR and NOT gates. For Y to be 1, A must be 1, B must be 0, and C must be 1.
