AIPMT PRELIMS2008Physics-Electronics

AIPMT PRELIMS 2008 Physics Logic Gates MCQ Question

Type: MCQ-conceptual-Easy-Class 12

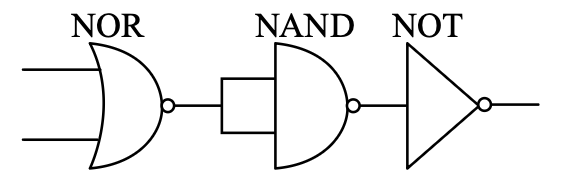

The circuit is equivalent to -

Question diagram

A

NOR gate

B

OR gate

C

AND gate

D

NAND gate

Correct Answer

Option A

Detailed Explanation

The given circuit configuration is equivalent to a NOR gate, which outputs true only when both inputs are false.
