AIPMT PRELIMS2005Physics-Current Electricity
AIPMT PRELIMS 2005 Physics Kirchhoff's Laws MCQ Question
Type: MCQ-numerical-Hard-Class 12

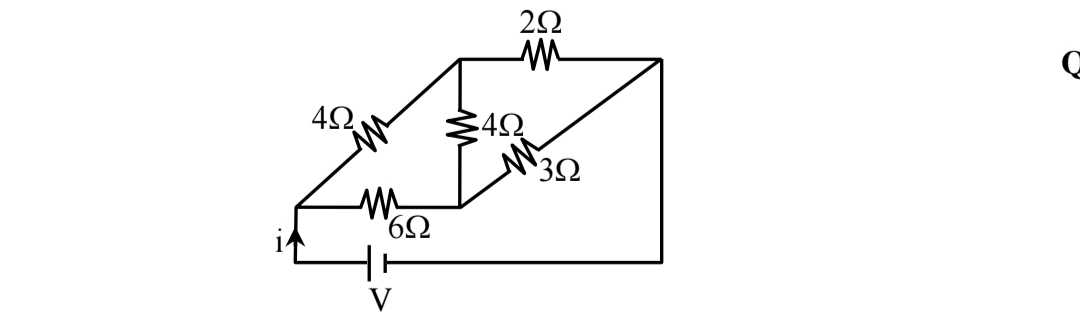

For the network shown in the figure, the value of the current i is:
A
9V/7
B
5V/18
C
9V/7
D
18V/5
Correct Answer
Option B
Detailed Explanation
Using Kirchhoff's laws and solving the circuit, the current i can be calculated to be 5V/18.
