AIPMT PRELIMS 2005 Physics Circuits MCQ Question

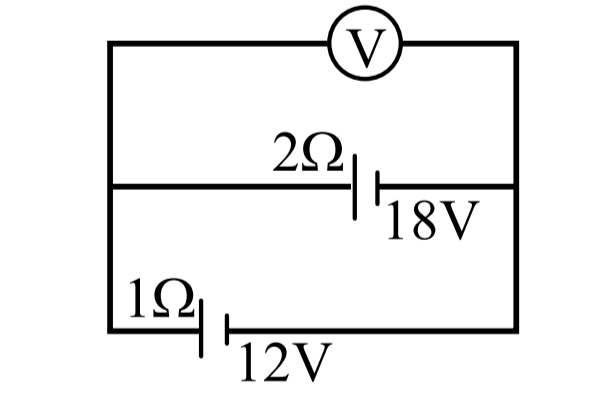

Two batteries, one of emf 18 V and internal resistance 2 Ω and the other of emf 12 V and internal resistance 1 Ω, are connected as shown. The voltmeter V will record a reading of:
7 V
21 V
14 V
28 V
Correct Answer
Detailed Explanation
The voltmeter measures the potential difference across the batteries. Using Kirchhoff's law, the net emf is 18 V - 12 V = 6 V, and the total internal resistance is 3 Ω. The current is 6 V / 3 Ω = 2 Å. The voltage across the 18 V battery is 18 V - 2 Å * 2 Ω = 14 V.
