STANDARDPhysics-Electric Charges and Fields
STANDARD Physics Electric Field Lines MCQ Question
Type: MCQ-conceptual-Medium-Class 12

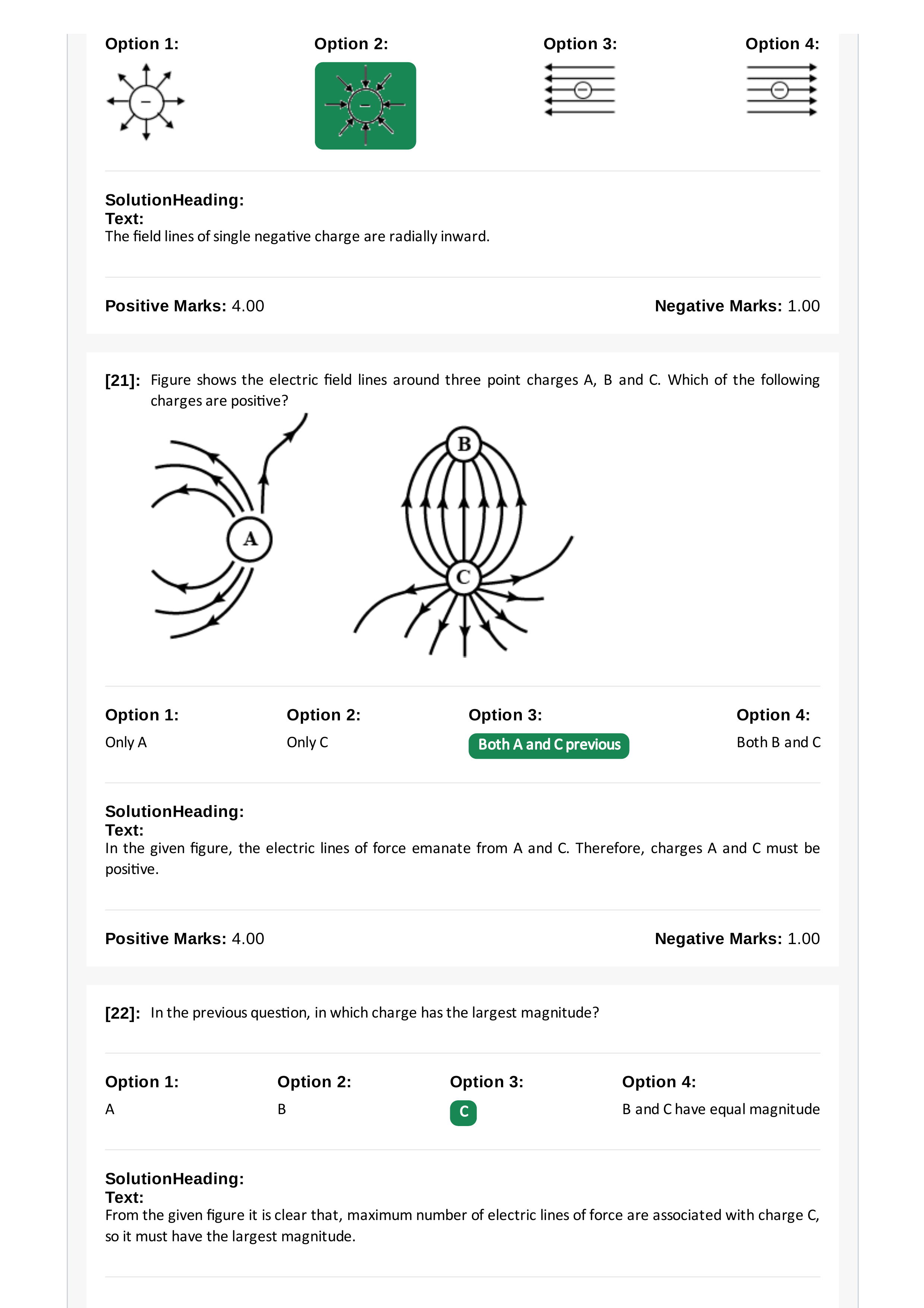

Figure shows the electric field lines around three point charges A, B and C. Which of the following charges are positive?
A
Only A
B
Only C
C
Both A and C
D
Both B and C
Correct Answer
Option C
Detailed Explanation
In the given figure, the electric lines of force emanate from A and C. Therefore, charges A and C must be positive.
