NEET Physics Faraday's Laws MCQ Question

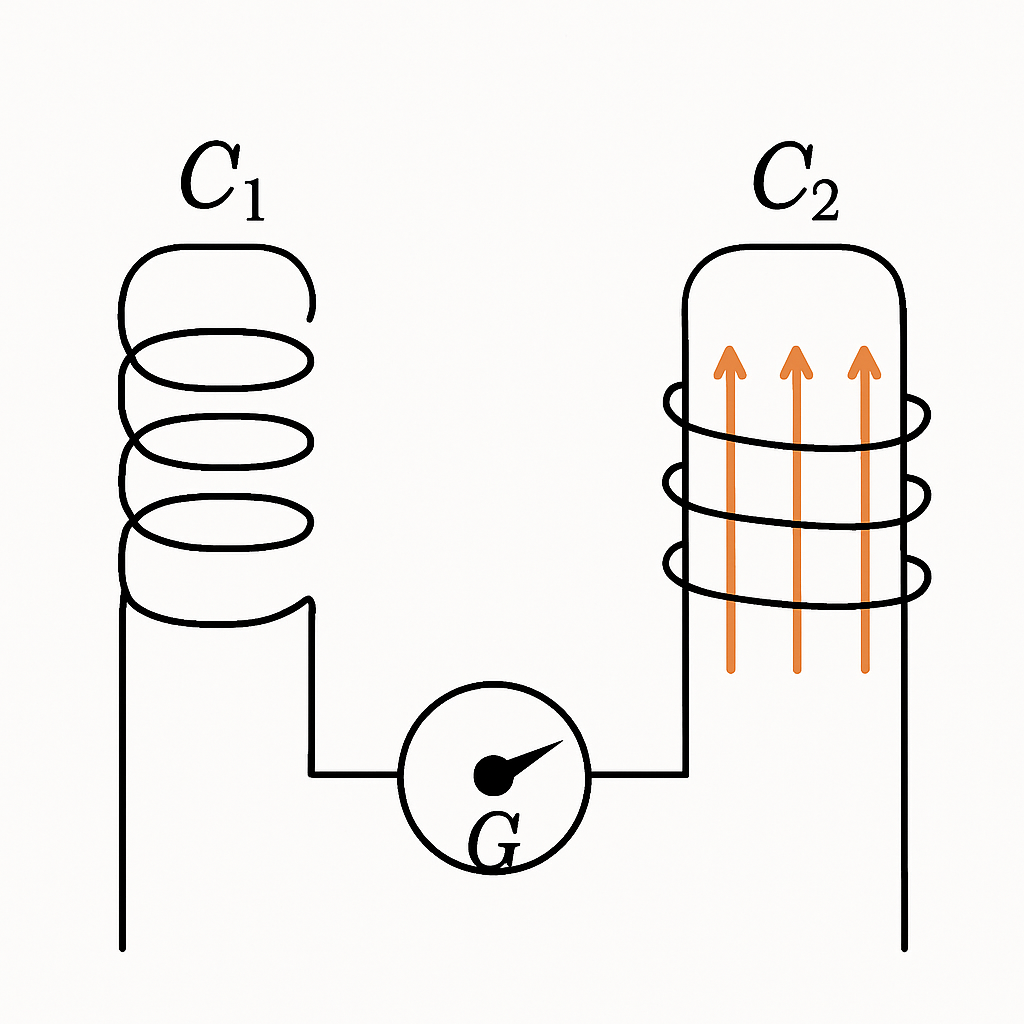

Consider a diagram showing two stationary coils, C1 and C2, with a galvanometer connected to C1. If the magnetic field in C2 changes over time, what will be observed in the galvanometer connected to C1?
The galvanometer will show a deflection indicating an induced current in C1.
The galvanometer will not show any deflection since both coils are stationary.
The galvanometer will show a deflection only if C1 is moved.
The galvanometer will show a continuous deflection as long as the magnetic field in C2 is non-zero.
Correct Answer
Detailed Explanation
A changing magnetic field in C2 induces an emf in C1, causing a deflection in the galvanometer, demonstrating Faraday's law of electromagnetic induction.
