NEET2024Physics-Electric Circuits
NEET 2024 Physics Wheatstone Bridge MCQ Question
Type: MCQ-conceptual-Medium-Class 12
Choose the correct circuit which can achieve the bridge balance.

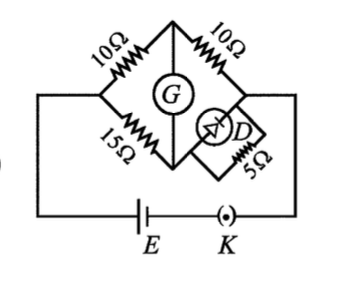

A

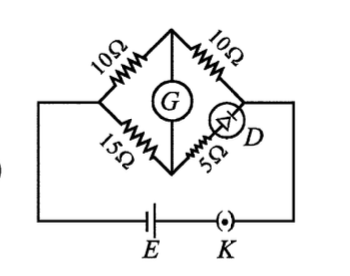

B

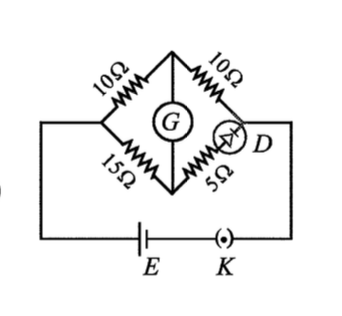

C

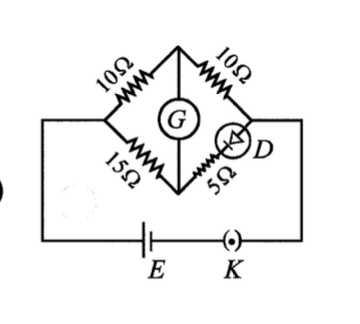

D
Correct Answer
Option C
Detailed Explanation
For a bridge circuit to be balanced, the ratio of resistances in one branch must equal the ratio in the other branch. Option D satisfies this condition.
Found an issue with this question?
