NEET Physics Resistance & Resistivity MCQ Question

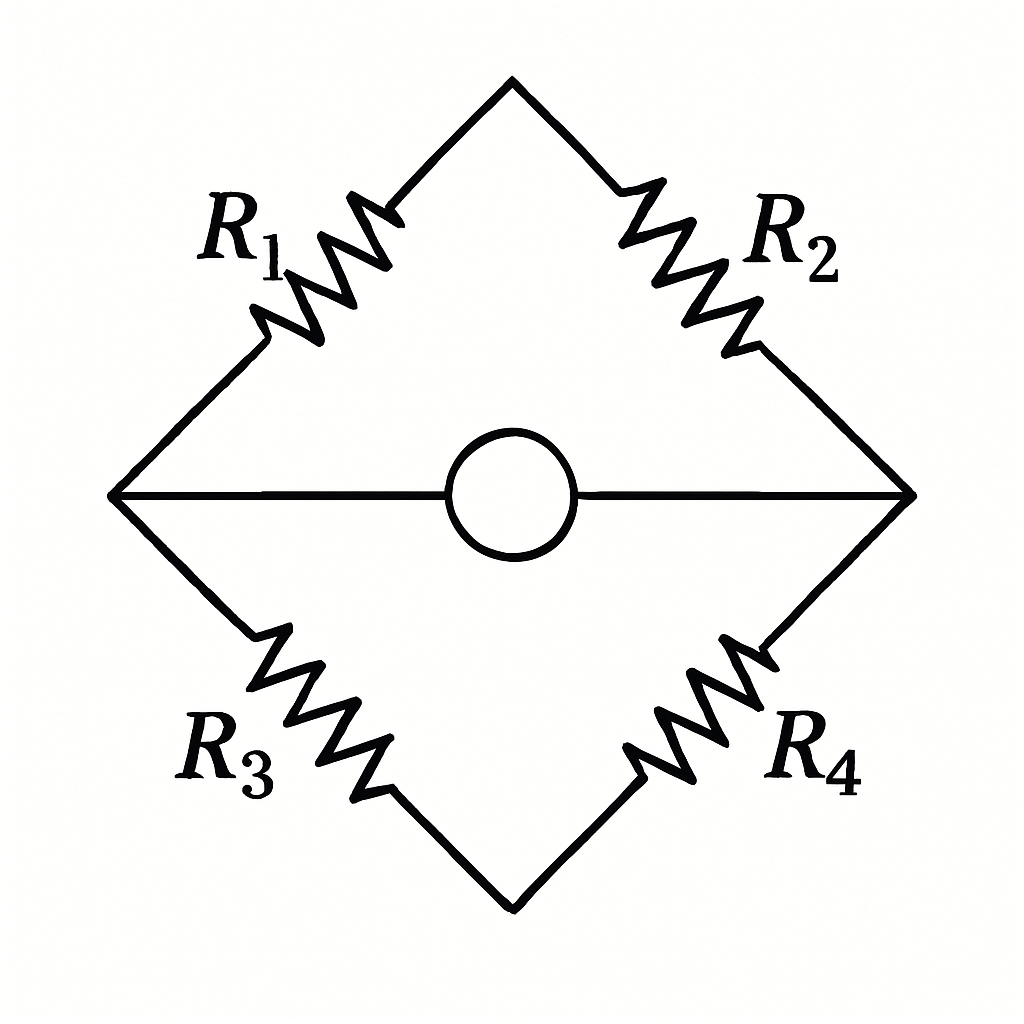

Consider a Wheatstone bridge circuit where resistors R1, R2, R3, and R4 are arranged in a diamond shape. If the bridge is balanced, which relationship among the resistors holds true?
R1/R2 = R3/R4
R1 * R4 = R2 * R3
R1/R3 = R2/R4
R1 + R4 = R2 + R3
Correct Answer
Detailed Explanation
For a balanced Wheatstone bridge, the condition R1 * R4 = R2 * R3 must be met, as derived from equations (3.62) and (3.63) in the NCERT context.
