NEET Physics Ohm's Law MCQ Question

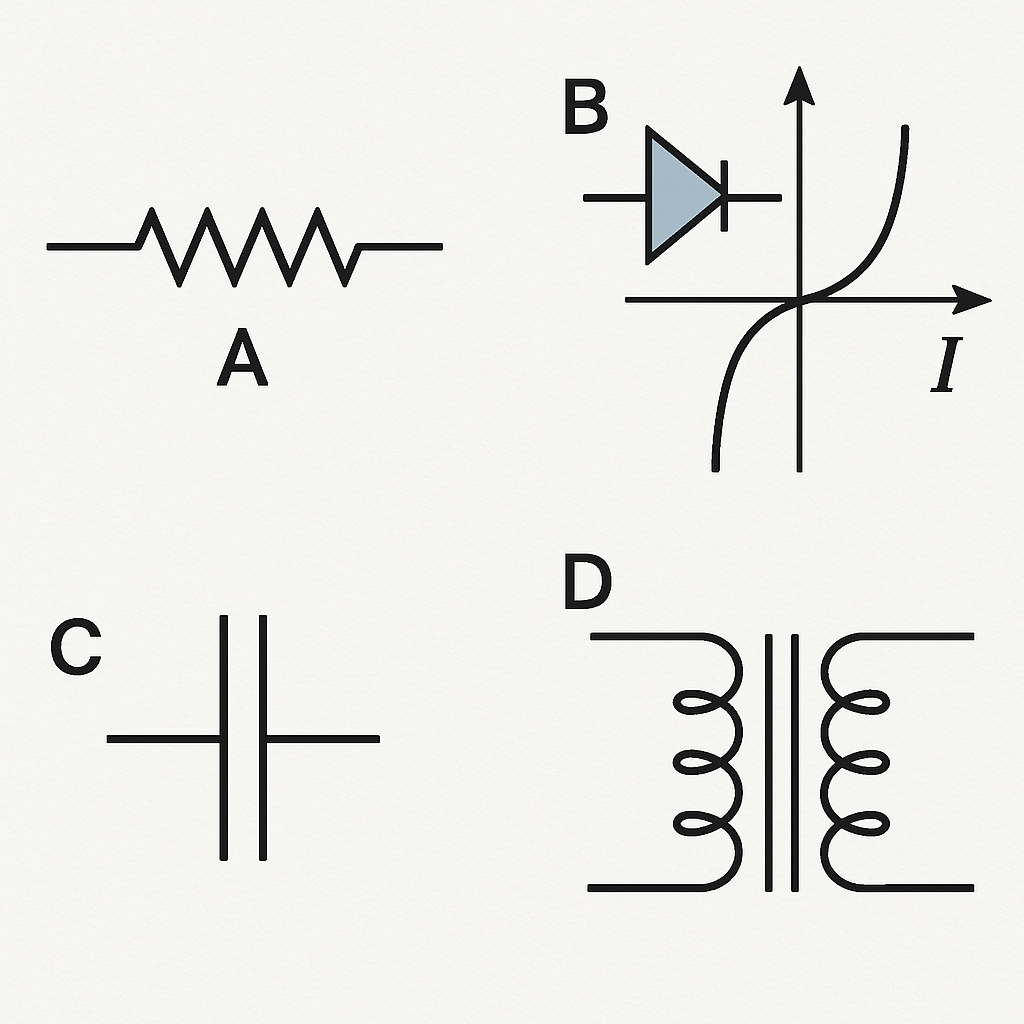

In the diagram shown above, which component demonstrates the principle that a resistor obeys Ohm's Law?
A resistor with a linear V-I curve
A diode with a non-linear V-I curve
A capacitor with voltage-dependent capacitance
A transformer with varying voltage output
Correct Answer
Detailed Explanation
Ohm's Law is demonstrated by a linear V-I relationship, which is characteristic of a resistor as described in the NCERT context.
Found an issue with this question?
