NEET Physics Uniform & Non-uniform Motion MCQ Question
Type: MCQ-diagram based-Easy-Class 11

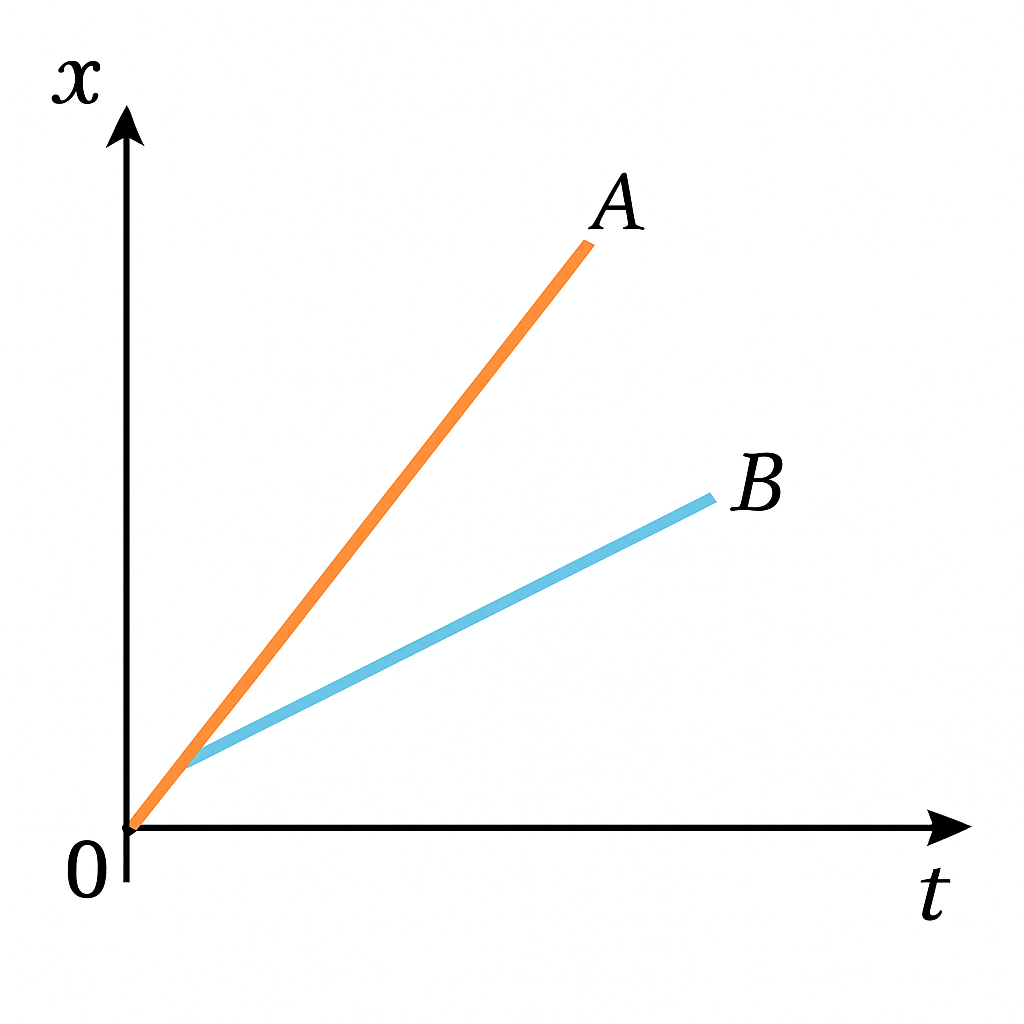

A position-time (x-t) graph shows two points labeled A and B for two objects moving in a straight line. Point A is higher on the y-axis compared to point B, and the slope of the line connecting A to the origin is steeper than that of B. Which statement is correct about their motion?
A
Object A is moving faster than object B.
B
Object B is moving faster than object A.
C
Object A and B are moving at the same speed.
D
The slope indicates the displacement of objects A and B.
Correct Answer
Option A
Detailed Explanation
The slope of a position-time graph represents the speed of the object. A steeper slope indicates a higher speed, so object A is moving faster than object B.
