NEET 2021 Physics Equilibrium MCQ Question

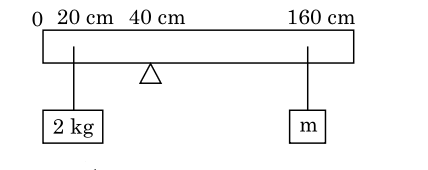

A uniform rod of length 200 cm and mass 500 g is balanced on a wedge placed at 40 cm mark. A mass of 2 kg is suspended from the rod at 20 cm and another unknown mass 'm' is suspended from the rod at 160 cm mark as shown in the figure. Find the value of 'm' such that the rod is in equilibrium. (g = 10 m/s²)
1/2 kg
1/3 kg
1/6 kg
1/12 kg
Correct Answer
Detailed Explanation
Using the principle of moments, the torque due to the masses must balance. Calculating the torques about the wedge, the mass m is found to be 1/3 kg.
