NEET 2021 Physics Magnetic Field due to Current MCQ Question
Type: MCQ-conceptual-Medium-Class 12
A thick current carrying cable of radius 'R' carries current 'I' uniformly distributed across its cross-section. The variation of magnetic field B(r) due to the cable with the distance 'r' from the axis of the cable is represented by :

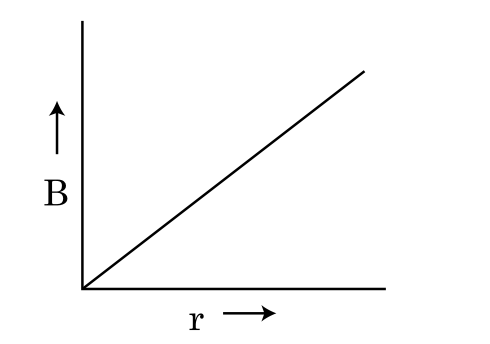

B
Diagram 2
C
Diagram 3

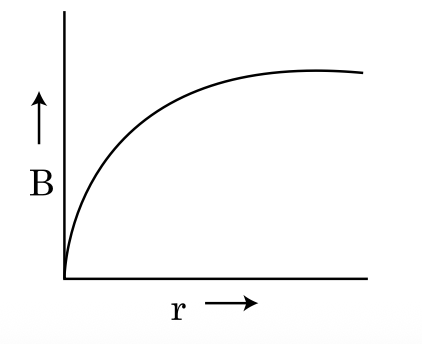

D
Diagram 4
Correct Answer

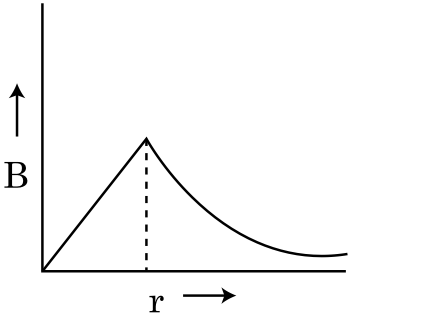

Option C
Detailed Explanation
Inside the cable, the magnetic field increases linearly with distance from the center, reaching a maximum at the surface, and then decreases inversely with distance outside the cable.
