NEET Physics Equilibrium of Forces MCQ Question

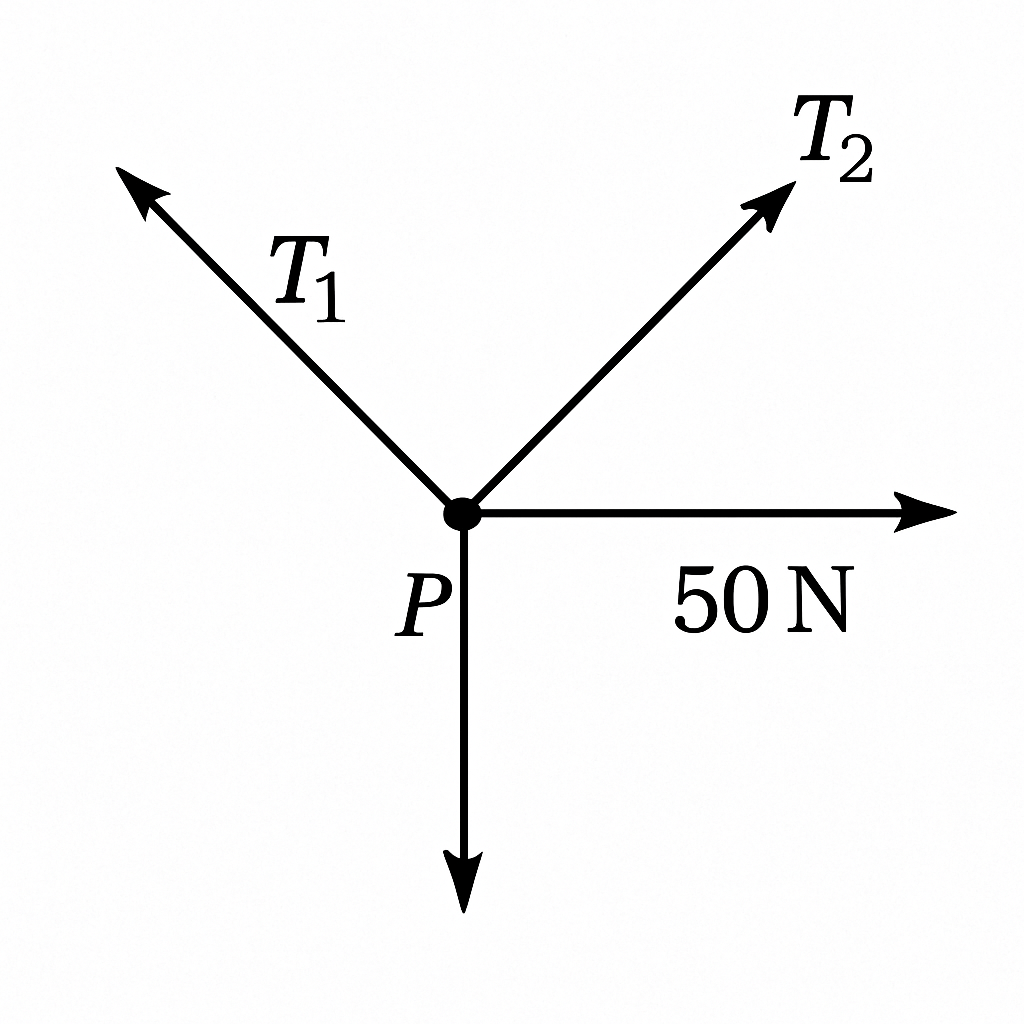

Consider a diagram showing a point P under equilibrium due to three forces: two tensions T1 and T2, and a horizontal force of 50 N. If T2 is 60 N, what is the value of T1?
78.1 N
34.2 N
60 N
50 N
Correct Answer
Detailed Explanation
Using the equilibrium conditions for forces, T1 cos θ = T2 = 60 N and T1 sin θ = 50 N. Solving these gives T1 = 78.1 N.
