NEET 2026 Physics Diode Circuits MCQ Question
Type: MCQ-conceptual-Medium-Class 12

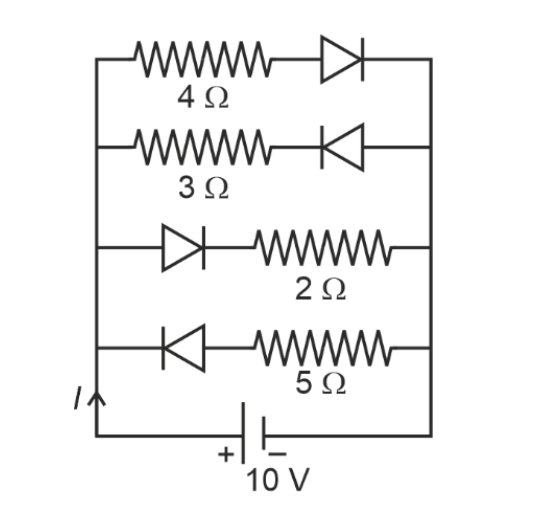

The current I in the circuit shown below is: (All diodes are ideal and identical)
A
5/3 Å
B
5/9 Å
C
1/3 Å
D
15/2 Å
Correct Answer
Option D
Detailed Explanation
For ideal diodes, the forward resistance is 0 and reverse biased resistance is infinite. The circuit can be redrawn and simplified to calculate the current using Ω's law, resulting in 15/2 Å.
