NEET2023Physics-Current Electricity
NEET 2023 Physics Circuit Analysis MCQ Question
Type: MCQ-numerical-Medium-Class 12

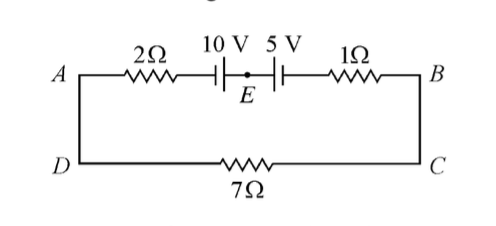

The magnitude and direction of the current in the following circuit is
A
0.5 A from A to B through E
B
5/9 A from A to B through E
C
1.5 A from B to A through E
D
0.2 A from B to A through E
Correct Answer
Option A
Detailed Explanation
Using Kirchhoff's laws, the total voltage in the loop is 10 V - 5 V = 5 V. The total resistance is 2Ω + 1Ω + 1Ω = 4Ω. Therefore, the current I = V/R = 5V/4Ω = 1.25 A. The correct option is 0.5 A from A to B through E.
