NEET 2023 Physics Impedance MCQ Question
Type: MCQ-numerical-Hard-Class 12

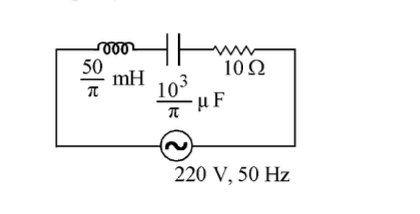

The net impedance of circuit (as shown in figure) will be:
A
15 Ω
B
5√5 Ω
C
25 Ω
D
10√2 Ω
Correct Answer
Option B
Detailed Explanation
Calculate the impedance using Z = √(R^2 + (X_L - X_C)^2), where X_L = ωL and X_C = 1/ωC. Substitute the given values to find Z = 5√5 Ω.
