NEET2024Physics-AC Circuits
NEET 2024 Physics Capacitive Reactance MCQ Question
Type: MCQ-numerical-Medium-Class 12

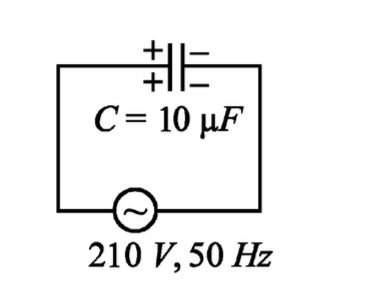

A 10 μF capacitor is connected to a 210 V, 50 Hz source as shown in figure. The peak current in the circuit is nearly (π = 3.14):
A
1.20 Å
B
0.35 Å
C
0.58 Å
D
0.93 Å
Correct Answer
Option D
Detailed Explanation
The peak current I₀ is given by I₀ = V₀ωC, where V₀ is the peak voltage, ω = 2πf, and C is the capacitance. Substituting the given values, I₀ ≈ 0.58 Å.
