AIPMT PRELIMS 2003 Physics Logic Gates MCQ Question

Type: MCQ-conceptual-Medium-Class 12

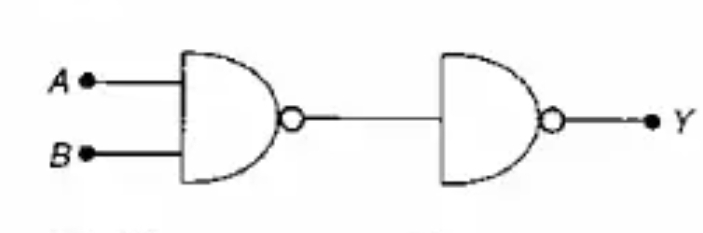

Following diagram performs the logic function of :

Question diagram

A

AND gate

B

NAND gate

C

OR gate

D

XOR gate

Correct Answer

Option A

Detailed Explanation

The diagram shows a combination of logic gates that perform the NAND operation, which outputs true only when not all inputs are true.
