AIPMT PRELIMS2012Physics-Semiconductors

AIPMT PRELIMS 2012 Physics Diodes MCQ Question

Type: MCQ-conceptual-Medium-Class 12

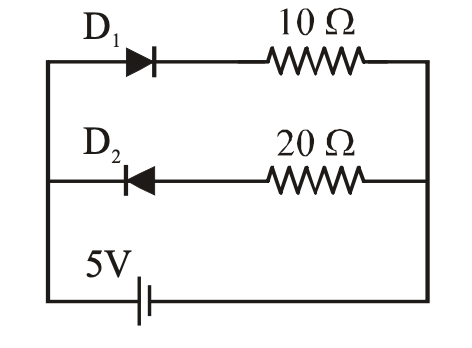

Two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is

Question diagram

A

0.5 Å

B

0.75 Å

C

zero

D

0.25 Å

Correct Answer

Option A

Detailed Explanation

D₁ is forward biased while D₂ is reverse biased, allowing a current of 0.5 Å to flow.
