AIPMT PRELIMS2002Physics-Semiconductors
AIPMT PRELIMS 2002 Physics Diode Circuits MCQ Question
Type: MCQ-conceptual-Medium-Class 12

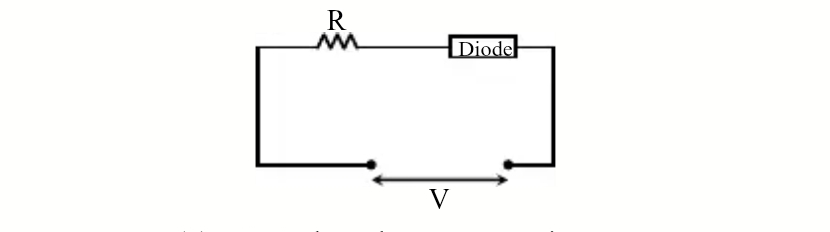

For the given circuit of P⁻N junction diode which is correct :-
A
In F.B. the voltage across R is V
B
In R.B. the voltage across R is V
C
In F.B. the voltage across R is 2 V
D
In R.B. the voltage across R is 2 V
Correct Answer
Option A
Detailed Explanation
In reverse bias (R.B.), the diode is off, and the entire voltage appears across the resistor.
