AIPMT MAINS2008Physics-Digital Electronics
AIPMT MAINS 2008 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Medium-Class 12

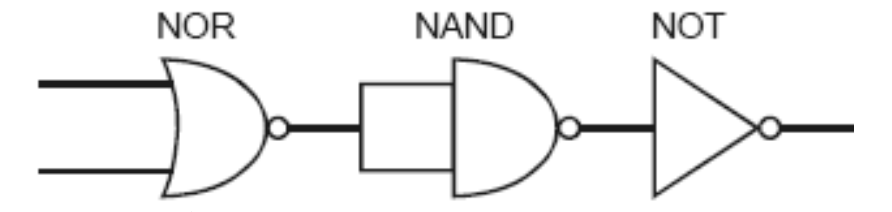

The circuit is equivalent to
A
OR gate
B
AND gate
C
NAND gate
D
NOR gate
Correct Answer
Option D
Detailed Explanation
The given circuit consists of a NOR gate followed by a NAND gate and a NOT gate. The combination of these gates results in a NOR gate equivalent.
