AIPMT MAINS2011Physics-Semiconductors

AIPMT MAINS 2011 Physics Diodes MCQ Question

Type: MCQ-numerical-Easy-Class 12

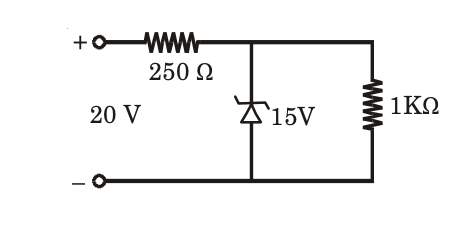

A zener diode, having breakdown voltage equal to 15 V is used in a voltage regulator circuit shown in figure. The current through the diode is :

Question diagram

A

20 mA

B

5 mA

C

10 mA

D

15 mA

Correct Answer

Option C

Detailed Explanation

The current through the diode is calculated using Ω's law: I = (20 - 15)/1000 = 5 mA.
