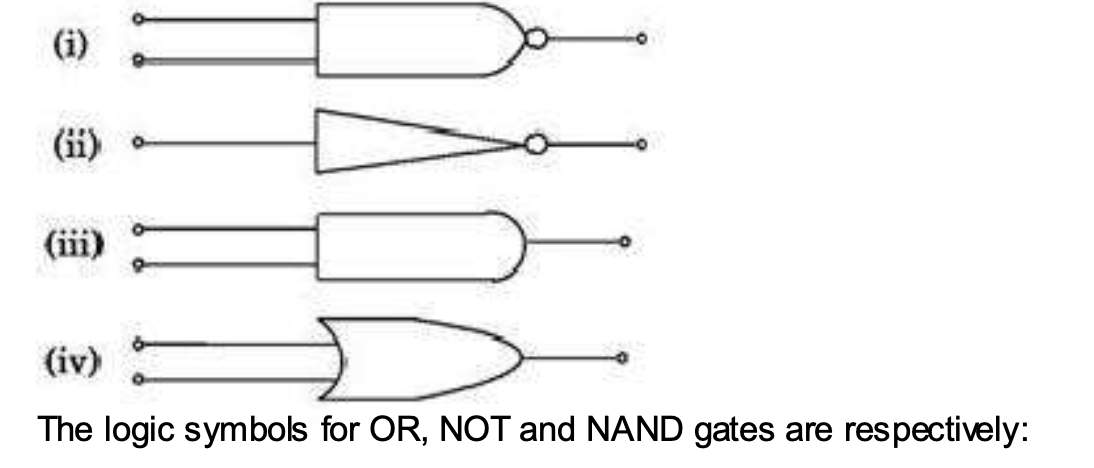

The symbolic representation of four logic gates are given below. The logic symbols for OR, NOT and NAND gates are respectively:
A
(iv), (i), (iii)
B
(iv), (ii), (i)
C
(i), (iii), (iv)
D
(iii), (iv), (ii)

Question

The symbolic representation of four logic gates are given below. The logic symbols for OR, NOT and NAND gates are respectively:

Accepted Answer

(iv), (ii), (i)

Answer

(iv), (i), (iii)

Answer

(i), (iii), (iv)

Answer

(iii), (iv), (ii)

AIPMT MAINS 2009 Physics Logic Gates MCQ Question
