AIIMS 2017 Physics Logic Gates MCQ Question
Type: MCQ-conceptual-Medium-Class 12

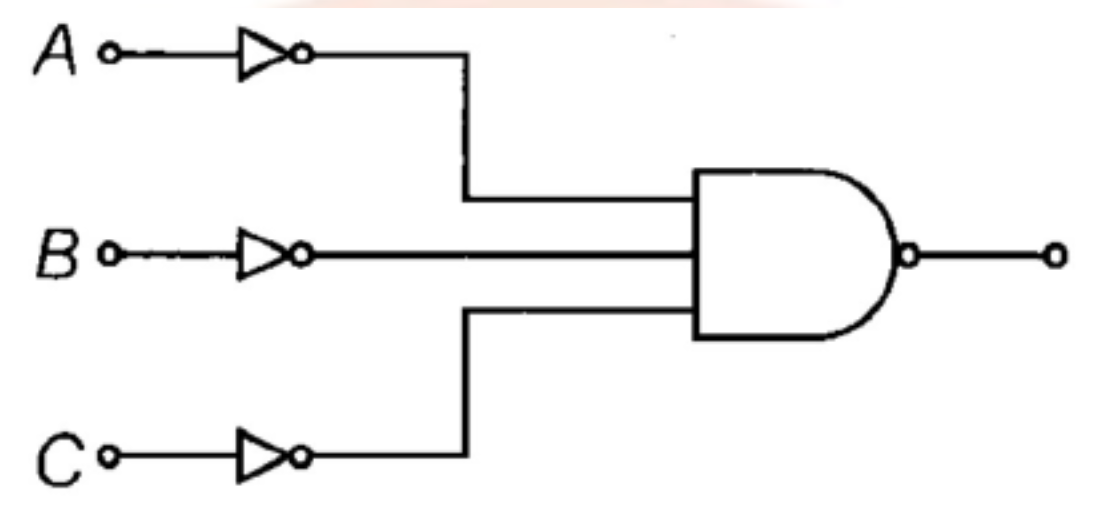

The proper combination of 3 NOT gate and 1 NAND gate is shown. If then the output of the combination is,
A
0
B
1
C
Not predictable
D
None of these
Correct Answer
Option C
Detailed Explanation
In the given scenario, the output is determined by the logical operation involving the values A = 0, B = 1, and C = 1. If the operation is an OR gate, the output will be 1 since at least one input (B or C) is true (1). Options A, B, and D are incorrect because they either represent outputs that do not satisfy the logical condition or do not correspond to the values provided in the question. Understanding the behavior of logical gates is crucial in analyzing circuits and their outputs based on binary values.
