AIIMS2016Physics-Digital Electronics

AIIMS 2016 Physics Logic Gates MCQ Question

Type: MCQ-conceptual-Medium-Class 12

The output for the given, circuit is

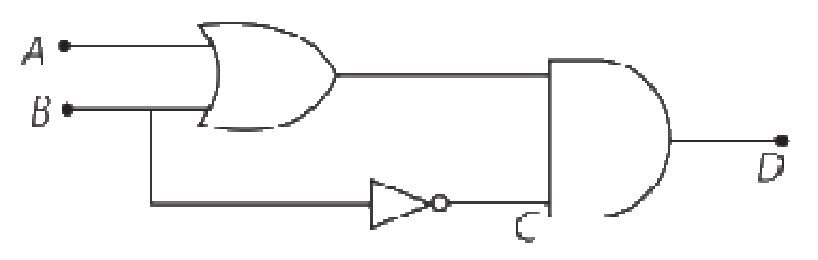

Question diagram
A

(A + B) · B̅

B

(A · B) · B̅

C

(A + B) · B

D

(A . B) · B

Correct Answer

Option A

Detailed explanation coming soon.
