AIIMS 2008 Physics Logic Gates MCQ Question

Type: MCQ-conceptual-Medium-Class 12

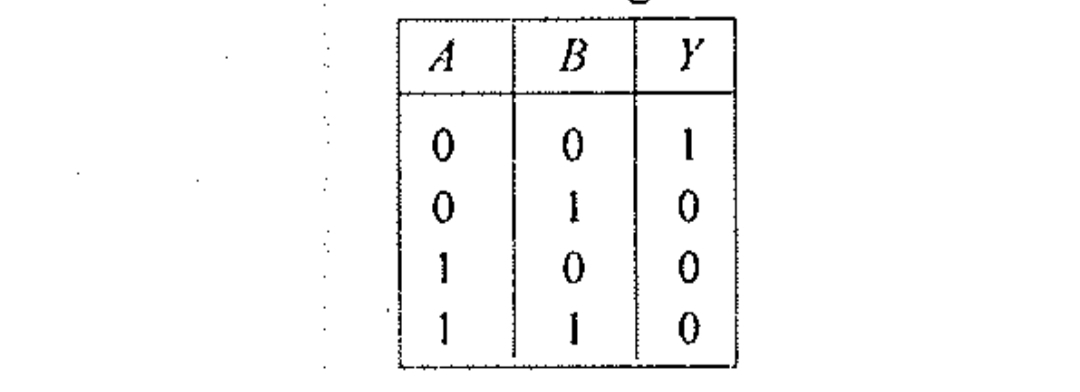

Which of the following gates correspond to the truth table given below?

Question diagram
A

NAND

B

OR

C

XOR

D

NOR

Correct Answer

Option D

Detailed Explanation

By truth table, Y = A+B. Therefore it is a NOR gate operation.
