AIIMS2001Physics-Electricity
AIIMS 2001 Physics Resistors in Circuits MCQ Question
Type: MCQ-numerical-Medium-Class 12

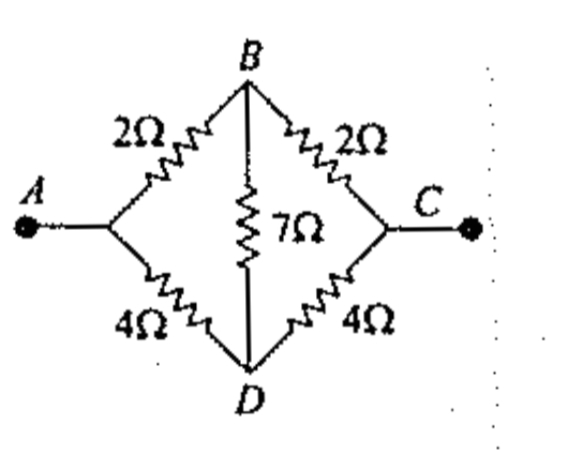

The equivalent resistance between A and C of the given circuit, is
A
8 Ω
B
32/12 Ω
C
4/3 Ω
D
8/3 Ω
Correct Answer
Option B
Detailed Explanation
Using series and parallel combinations, the equivalent resistance is calculated to be 8/3 Ω.
